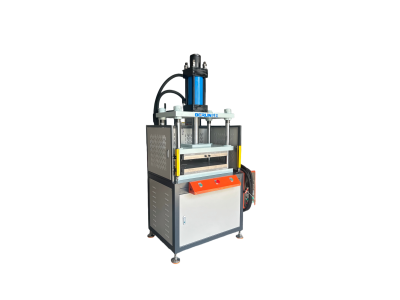

BL105F四柱热压机

105F系列油压热压机

105F Series Hydraulic Hot Press

特点  Feature

1．采用四柱三板式结构，活动板与工作面平行精度高，四个精密套使上压垂直精度高。

2．油缸采用可调式，下死点定位精度高，重复精度0.01mm;

3．设备液压组合在机架内部，结构紧凑，外形美观大方；

4．工作台下方装有脚轮和脚杯，可轻便移动，省力高效

5．另可选上下模板增加发热装置和进口智能温控器，温差可以精确±1度，上下模温度可分开控制，操作方便；

6．另可选中间模板增加测力传感器及显示器，精确显示产品受力状况，达到所需工作目的；

1. The four column three plate frame causes a smooth, pressing action between the active plane and wok platform giving the machine a precise downward press;

2. The adjustable cylinder stroke from a fixed point ensures repeated precision of up to 0.01mm;

3. An ideal design of gathering the hydraulic components inside the centre of the overall frame, which makes pro105F more stable and decent;

4. An imported intelligent temperature controller and separately controlled thermal patens can e fed into the up and down molds, helping ensure a differential of less than one degree and hence ensuring safety;

5. An electronic ruler and security curtain light and displayer can be installed as a option to increase functionality and safety;

6. See the four Goblet shaped press Feet and idler wheels.

适用范围  Scope of Application:

1. 各类手机或遥控器硅胶、塑胶按键冲切，塑料制品整切分切；

2. 各种手机、数码相机、手提电脑液晶显示屏保护膜裁切，各种不有切干胶、商标等的精切，切半断等；

3. 各类PV、PE、PC等薄膜开关、薄膜面板打凸鼓包、成型等。

4. 各种手提电脑键盘软件电路线路压合成型等；

1. Die cutting of the silica gel and plastic buttons of various handsets or remote controls,

2. Whole or partial cutting of plastic product.

3. Cutting of protective film of LCD screens.

4. Precise cutting and half cutting of adhesives tapes.

5. Raising, bulging, and forming of various film switches and film plates made of PV, PE, and PC etc.

6. Pressing and forming of flexible circuits and lines for notebook computer keyboards.
