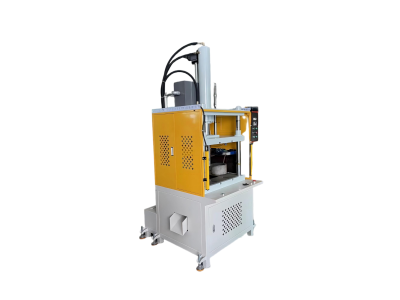

BL106K压铸品冲边机

106K快速油压机

106K Fast Hydraulic press

特点  Feature

1. 采用四柱三板式结构，活动板与工作面平行精度高，四个精密导套使下压垂直精度高。

2. 安全设计周全，双手操作，设有紧急按钮（光电保护装置需另加装）及上下动调模按钮；

3. 工作台面配有落料槽及吹气装置，提高生产效率；

4. 压力、行程、速度、保压时间、闭合高度均可按需求调整，方便操作；

5. 工作台下方装有脚轮和脚杯，可轻便移动，省力高效；

1. Precise four-column three-platen frame, the grad of parallelism between the Active platen and the work platform could reach up to more than 0.08mm under the control mode that the three platen are controlled by the four precise guide sleeves;

2. Manual & semi-automation operation system, front stretched out control platform, emergency buttons, security curtain light, considerate design for overall security;

3. Instrument of loading material and blow facility, special design concept for special process work;

4. Pressing force, stroke of cutting, dwell time, die height could be adjusted manually comply with practical demand;

5. Standard idler wheel and goblet shaped machine feet, convenient to move.

适用范围  Scope of Application:

     各类铝、镁合金压铸制品的毛边冲切及整形，塑料制品的整切；也适用于塑性材料的成形如板料的落料、拉伸、压印等以及塑料、粉末制品的压制等多种用途。汽车和摩托车配件行业用途最广泛。

1.


1. Die cutting and shaping of burrs of various alloy die casting products;

2. Overall cutting of plastic products, forming of plastic material, such as: blanking, stretching and embossing of plates, pressing of plastic and powder products, and other similar applications;

3. It is comprehensively used in auto and motorcycle fitting sectors.
